03 / FOR RESEARCH AND CI
The OpenMCX framework at glance

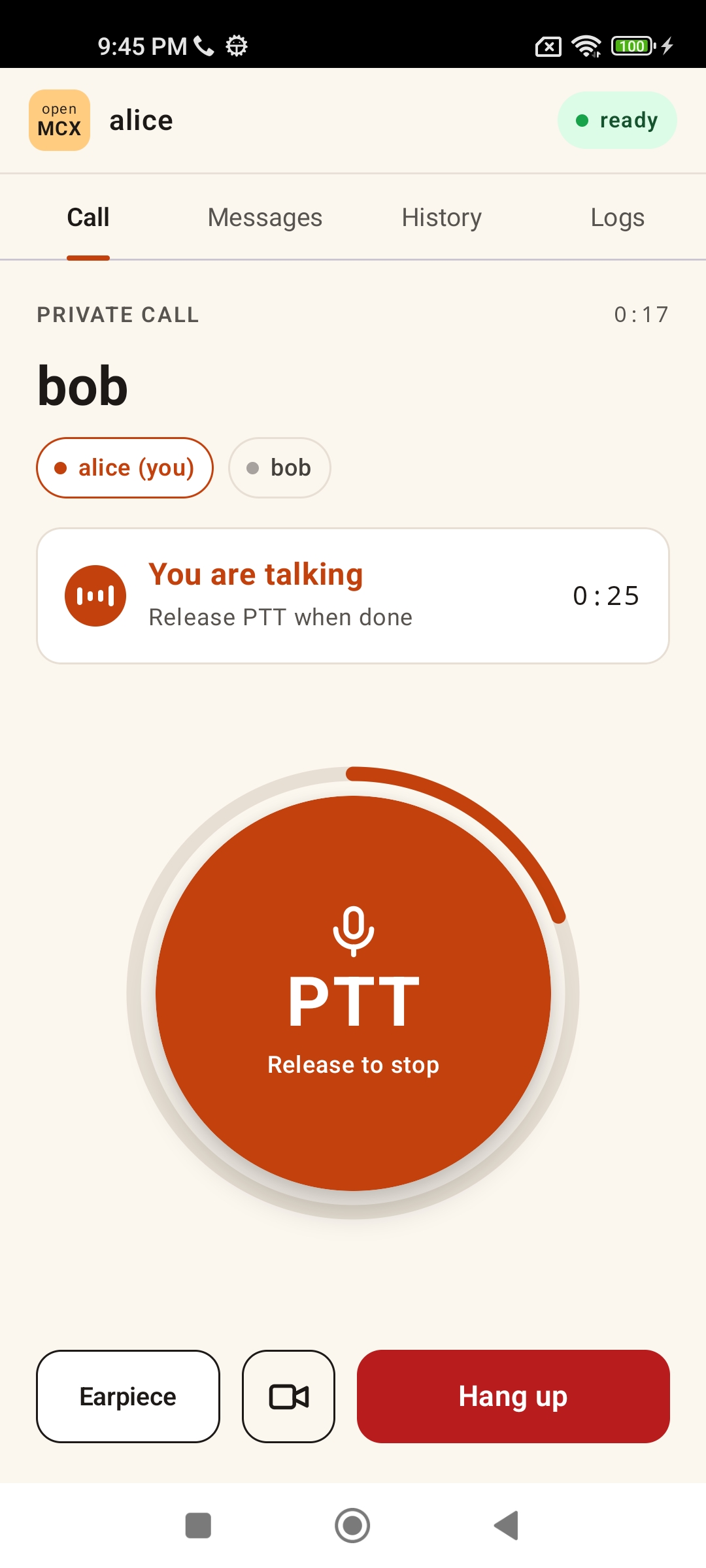

Explore the Android client

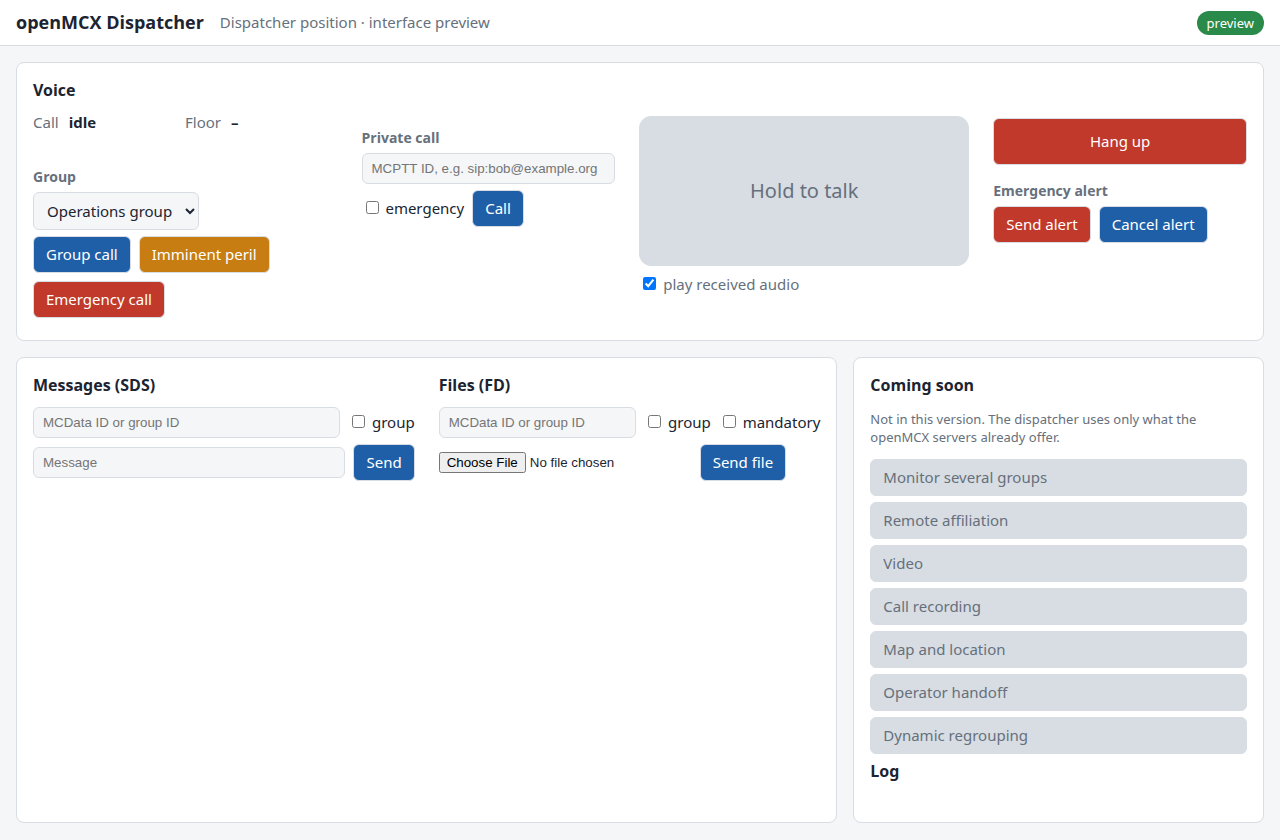

Explore the dispatcher client

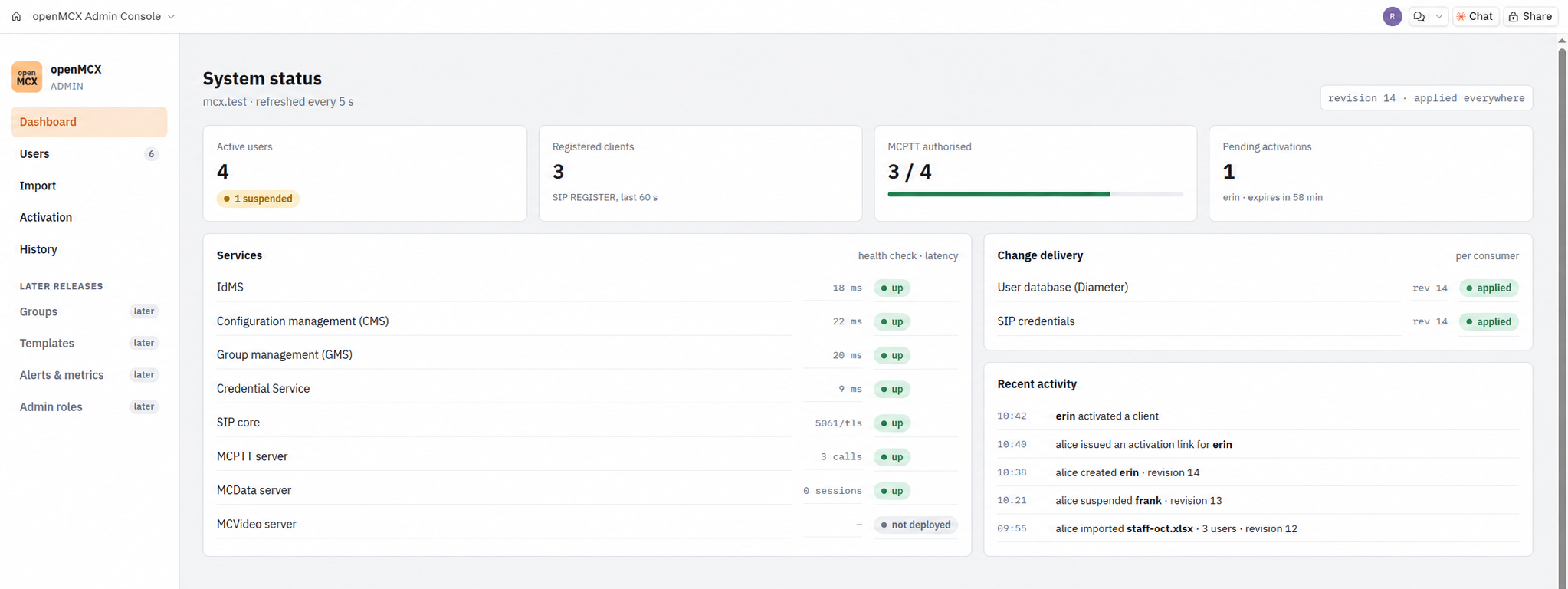

Explore the admin console
SERVICES
Enabling Three mission critical services
Mission Critical Push To Talk (MCPTT)
- Prearranged, chat, broadcast and ad hoc group calls with floor control and queueing
- Private calls in every commencement mode, first-to-answer, ambient listening
- Emergency and imminent-peril calls, alerts, priority pre-emption
- End-to-end protected media (GMK and PCK) and signalling
Mission Critical Data (MCData)
- Short data (SDS) over signalling and media planes: one-to-one, group, ad hoc
- File distribution over HTTP and the media plane, with disposition notifications
- IP connectivity, enhanced status, functional aliases
- Message store with notification channels, location
Mission Critical Video (MCVideo)
- Group and private calls with transmission and reception control
- H.264 video checked picture by picture at every receiver
- Video pull and push, server recording, ambient viewing
- Calls between two MC systems, directly or through MC gateways
OPEN SOURCE
Explore the components.
ARCHITECTURE

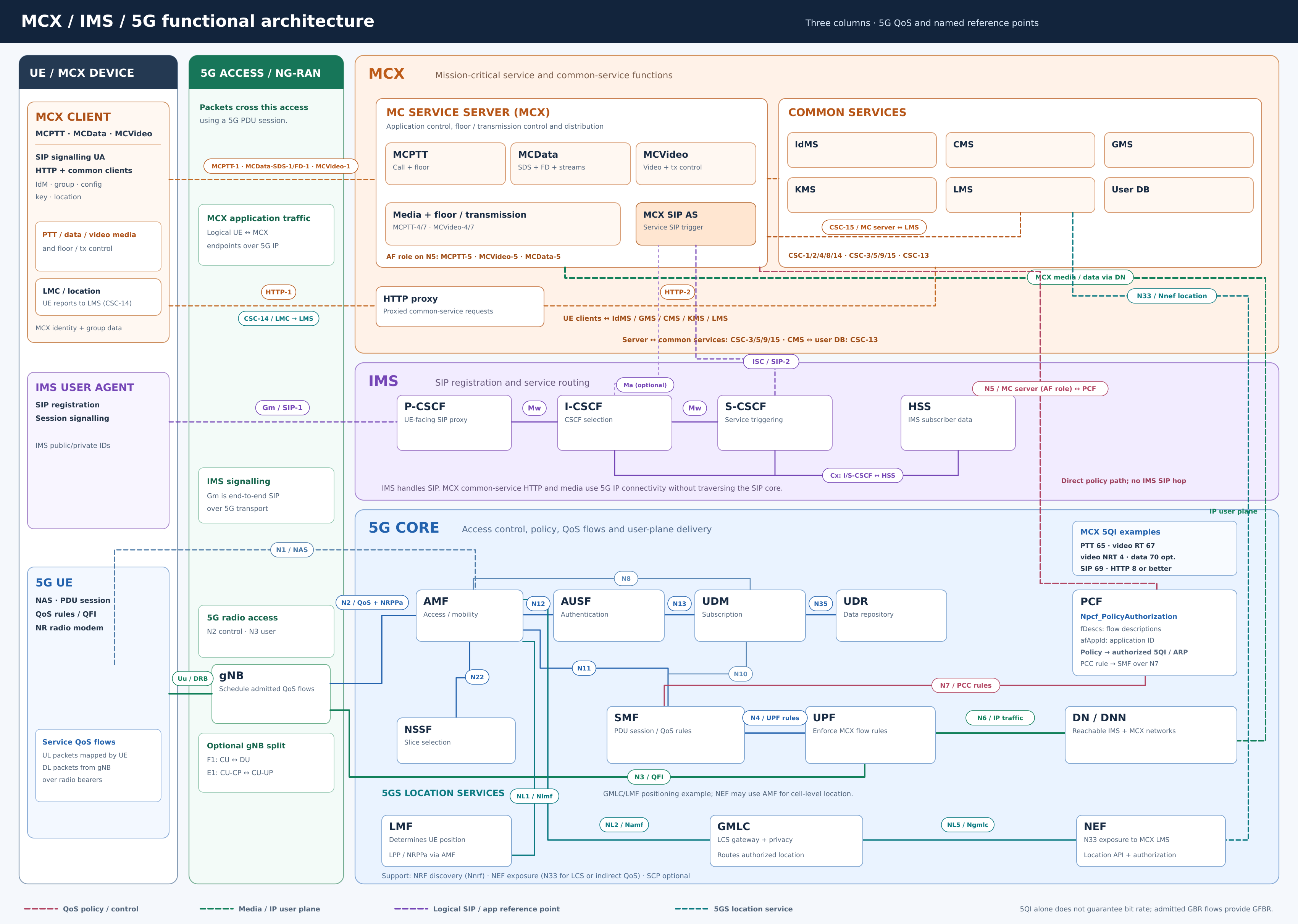

High Level Overview of MCx over 5GS
